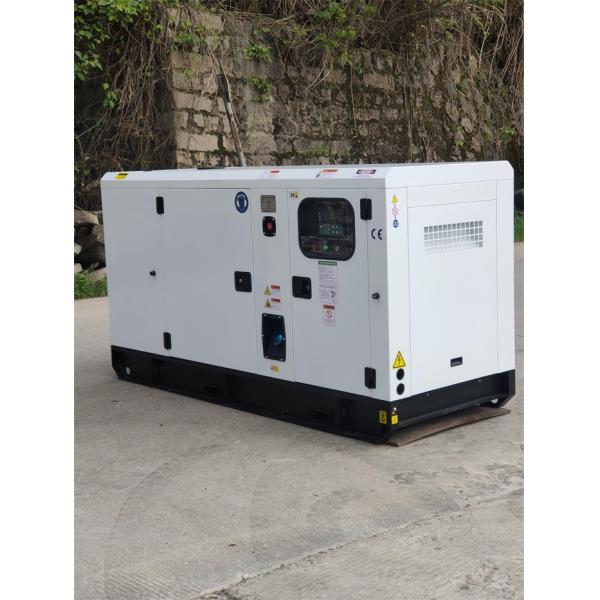

Rated 25kW Silent diesel generator set driven by FAWDE engine 24 hours daily fuel tank option
Product Description:
Our China Made Genset is a powerful DG generator that is equipped with FAWDE diesel engine and provides reliable operation with high efficiency. It offers a frequency of 50/60Hz and speed of 1500/1800rpm, and has a water cooled cooling system. With a warranty of 1500 running hours, it is an excellent choice for those seeking a top-notch China Engine Genset that is reliable and durable.
Features:
- Product Name: China Made Genset FAWDE
- Cooling System: Water Cooled
- Voltage: 220-440V
- Frequency: 50/60Hz
- Speed: 1500/1800rpm
- FAWDE Diesel Engine Generator Set
- Silent Generator Set
- China DG Genset
Technical Parameters:
| Technical Specification: |
| 28kW FAWDE Generator Set Specification |
| Genset Model | TG34FW | TG34FWS |
| Open | Silent |
| Frequency | 50Hz |
| Voltage | 415/240V |
| Phase | 3 |
| Rate Current | 44.7A |
| Prime Power | 25kW / 31kVA |
| Standby Power | 28kW / 34kVA |
| Engine Model | FAWDE 4DX21-45D-YFD10W |
| Alternator Model | TGI184S25 |
| Controller | Mebay DC52D |
| Weight & Dimensions |
| Length (mm) | 1650 | 2150 |
| width (mm) | 800 | 950 |
| Height (mm) | 950 | 1100 |
| Weight (kgs) | 850 | 1150 |
| Engine Specification |
| Brand | FAWDE |
| Engine Model | 4DX21-45D-YFD10W |
| Prime power (kw) | 33 |
| Injection | Indirect |
| Aspiration | Turbocharged |
| No. of cylinders | 4 |
| Bore of Stroke (mm) | 90 x 100 |
| Displacement (L) | 2.54 |
| Cooling | water |
| Compression Ratio | 18:1 |
| Engine Oil capacity (L) | 6.3 |
| Coolant Capacity ( In radiator) | 6.3 |
| Governor | Electric |
| Air Filter | Dry Element |
| Fuel consumption | at 50Hz |
| 100% Load (L/h) | 7.1 |
| 75% Load (L/h) | 5.4 |
| 50% Load (L/h) | 3.6 |
| 25% Load (L/h) | 1.8 |
| Alternator Specification |
| Brand | Tecgen |
| Model | TGI184S25 |
| Rate Output | 25kW |
| Pole | 4 |
| Winding Connections | Star |
| Insulation Class | H |
| Enclosure | IP23 |
| Altitude (m) | ≤1000 |
| Voltage Regulator | AVR |
| Steady State Voltage Regulator | 1% |
| Bearing | Single |
| Controller System |
| Brand | Mebay |
| Model | DC52D |
| Functions | Control with AMF module |
| Static with auto. battery charger |
| Emergency stop push button |
| ATS Connection |
| OPTIONAL EQUIPMENTS |
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts |
Applications:
Chinese Diesel Generators are a reliable, cost-effective, and efficient source of power generation. FAWDE Diesel Generators are designed to provide a stable and reliable power source for commercial and industrial applications. The Silent Diesel Generator is the perfect choice for any situation, offering a silent, reliable, and efficient power source. Power DG Generators are designed to provide maximum power output with minimal fuel consumption. The China Diesel Generator has been developed to provide cost-effective and reliable power for a variety of applications. With its advanced technology and superior performance, the Tecgen China Engine Genset TG is the perfect choice for any power generation needs. The TG34FWS is available in a wide range of power ranges, from 12kW to 320KW, and is certified by CE/SONCAP/SASO/SGS. It is available in 220-440V and has a 1500 running hours warranty. The generator is packaged in a plywood case package or by foam and PE film package and delivery time is 15 working days. The minimum order quantity is 1 unit and prices are negotiable. We stock 400 units each month for fast delivery.
Customization:
Chinese Diesel Generators
Tecgen China Engine Genset, Model TG34FWS, is a Chinese diesel generator with CE/SONCAP/SASO/SGS certification, and is powered by either SDEC or FAWDE diesel engine. It is water cooled and offers a voltage range of 220-440V. Minimum order quantity is 1 Uint, and the price is negotiable. Packaging details are Plywood case package or By Foam and PE film package. Delivery time is 15 working days. Payment terms are T/T, L/C. Supply ability is 400 units per month. Warranty is 1500 running hours.
Packing and Shipping:
Chinese Diesel Generators are typically packaged and shipped using wooden crates or boxes and high-quality stretch wrap film. The crates are made of solid pine wood and feature inner and outer bracing to ensure the safety of the generator during transit. The boxes are made of sturdy corrugated cardboard and feature reinforced edges and corners. The stretch wrap film provides additional protection from dust, dirt, and moisture.
Before being shipped, the Chinese Diesel Generators are inspected for any potential defects or damages. All components are securely fastened and tightened. Any wiring is also checked for proper connections and insulation. The generator is then secured in the crate or box using heavy-duty straps, clamps, and other fastening devices.
The Chinese Diesel Generators are shipped with tracking numbers and insurance. They are carefully loaded onto the delivery truck and transported to the customer's location. Once the generator arrives, it is unloaded and inspected before being accepted by the customer.
