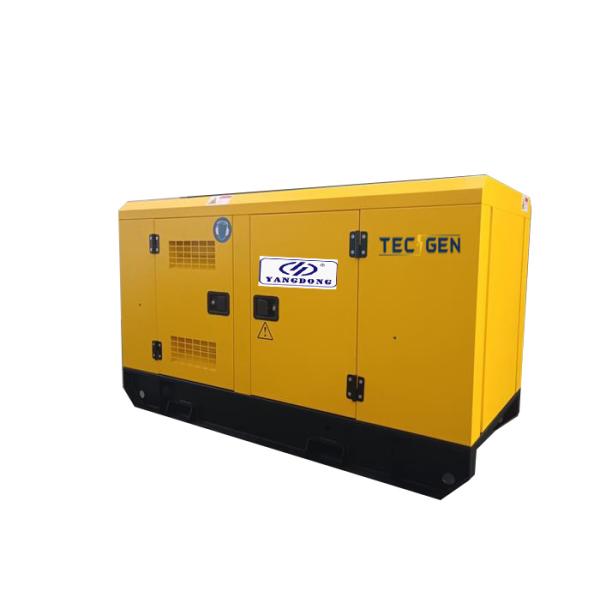

22kW Silent diesel generator powered by Y495D diesel engine with chassis base fuel tank
Tecgen Power Main Products:
Water Cooling Diesel Generator: 1kw to 2400kw.
Air Cooled Diesel Generator: 11kW to 91kW
Marine Diesel Generator:12kW to 500kW
Brush/Brushless Alternator: 2kVA to 800kVA
AC Electric Motor: 0.18kW to 315kW
CKD / SKD type Diesel Generator
Famous engines:
Powered by Cummins / Deutz / Perkins / Yangdong / Weifang Ricardo / SDEC / Weichai / Yuchai / FAWDE / Quanchai / YTO / ISUZU / VMAN / Googol / Yanmar
Famous Alternators:
Stamford / Leroy Somer / Meccalte / Marathon / Copy Stamford etc.
Control panel: DEIF, Smartgen, Deepsea, ComAp, Tecgen
Portable Gasoline Generators
Portable Diesel Generators
Chinese Diesel engines
Genset / engine / Alternator / Overhaul Spare parts
Generators Variety Models:
Genset with Fuel tank or Integrated Fuel Tank
Silent type genset with Fuel tank or Integrated Fuel Tank
Silent & Mobile type genset with Fuel Tank or Integrated Fuel Tank
Genset with 24 hours built-in Fuel Tank or Daily Fuel Tank (1000L, 2000L, 3000L, 5000L, 10000L)
Super Silent type genset with 60dB (A) at 7m
LCD show panel with protection system, self-start, remote control & monitor
Vehicle mounted Diesel Generator
Automatic transfer switch types(ATS)
Weatherproof types
20FT / 40FT standard container canopy type for big output generator set
22kW Diesel Genset Specifications:
| 22kW Silent Enclosed Diesel Generator Datasheet |
| Yangdong Generator Set | Genset Type | Silent Enclosed |
| Genset Model | TG28YDS |
| Prime Output | 25kVA / 20kW |
| Max Output | 28kVA / 22kW |
| Engine model | Yangdong Y495D |
| Alternator mdoel | TGI184S20 (Copy Stamford) |
| Frequency | 50Hz |
| Speed | 1500rpm |
| Voltage | 380/220V |
| Output Type | 3 Phase, 4 Wire |
| Current | 38.0A |
| Controller | TG6120U |
| ATS | 63A Built-in ATS |
| Breaker | Aisikai / Delixi |
| Battery | Varta |
| Fuel Tank | 8 running Hours |
| Demission | L2200x750x1180mm |
| Weight | 700kgs |
| Yangdong Generator set parameters |
| Voltage setting range | ≥±10% |
| Steady state voltage regulation rate | ≤0.5% |
| Transient voltage deviation (100% sudden power reduction) | ≤+17% |
| Transient Voltage Deviation (40% Sudden Power) | ≤-6.5% |
| Voltage Stability Time (100% Sudden Power Reduction) | ≤2.8S |
| Voltage Stability Time (40% Sudden Power) | ≤2.5S |
| Frequency adjustment range | ≥±10%Adjustble |
| Frequency volatility | ≤±0.25% |
| Transient frequency deviation (100% sudden power reduction) | ≤+8% |
| Transient frequency deviation (40% sudden power) | ≤-5% |
| Frequency Recovery Time (100% Sudden Power Reduction) | ≤1.48S |
| Frequency recovery time (40% sudden power) | ≤1.35S |
| Diesel Engine Parameters |
| Yangdong Engine Y495D | Brand | Yangdong |
| Model | Y495D |
| Prime power | 27kW |
| Combustion | Direct Injection |
| No. of Cylinders | 4 Cylinder |
| Aspiration | Naturally Aspriated |
| Compression Ratio | Direct Injection |
| Speed | 1500rpm |
| Displacement | 2.977 |
| Bore* Storke | 95mm*105mm |
| governor | MECH |
| Start motor | DC 12V |
| Cooling Capacity | 5.3 |
| Cooling Type | Water cooling |
| FUEL CONSUMPTION | 240g/kW.h |
| Brushless Alternator Parameters |
| Alternator TGI184S20 | Brand | Tecgen |
| Model | TGI184S20 |
| Rate Output | 25kVA |
| Rate Speed | 1500rpm |
| Frequency | 50Hz |
| Altitude | ≤1000 |
| Alternator type | Single bearing, brushless type |
| Connection Type | 3 phase, 4 wire |
| Protection Grade | IP23 |
| Insulation Class | H |
| Voltage Regulation | AVR |
| Option brand | Stamford,Leroy Somer,Meccalte |
| Genset Controller System |
| Controller TECGEN TG6120U | Brand | TG6120U |
| Model | SGC-420 |
| Functions | AMF/ATS |
| RS485 & CAN communication |
| Inlet & Outlet |
| PLC & BTN |
| Protections | Under-speed |
| Over-speed |
| Configurable crank connect |
| Battery monitoring |
| Charging alternator |
| Pre-heat |
| Coolant temperature |
| Lube oil pressure |
| Fuel level detection |
| Fuel theft detection |
| ECU communication failure |
| ECU diagnostic lamp |
| Option brand | DEEPSEA,Smartgen,ComAp |
| Optional accessories |
| Engine | Alternator | Electrical system |
| Water Heater | Anti-condensation heater | Anti-condensation heater |
| Oil preheater | PMG | Unit control screen with three remote functions |
| Air starting motor | Parallel | ATS automatic load transfer screen |
| Heavy Air Filter for Desert | Generators of other temperature rise grades | Full-automatic parallel screen for multiple units |
| Heavy duty secondary muffler | RTD temperature sensor, 2 per phase | Remote control system separate from unit |
| Fuel system | Other | Cooling system |
| 12/24h Base tank | Super Silent Canopy | Split water tank |
| Oil - water separator | Static sound box generator set |
Remote water tank
|
| Fully automatic oil supply system | Vehicle-mounted power generation vehicle | Heat exchanger and external circulation cooling tower |
| Integrated Fuel Tank | Towing generator set | Marine cooling system |
| Delivery Date of Diesel Generator Set |
| Spot goods | QTY(Set) | 12 – 24 Sets | 24 – 120 Sets |
| Delivery Time | 7-15 Days | 15 – 25 Days |
| Custom | Delivery Time | 20 Days | 20 – 30 Days |
Diesel Generator Advantages:
- Enhanced Safety Features: Equipped with a radiator and fan that are fitted with a safety guard, ensuring the safe operation of the generator.
- Rigorous Inspection Process: Each generator unit undergoes three comprehensive inspections before delivery. These inspections include testing the generator at 50%, 75%, 100%, and even 110% load capacity to ensure its performance and reliability.
- Robust Steel Frame: The generator set is constructed with a heavy-duty steel frame, utilizing high-quality steel ranging from 2mm to 6mm in thickness. This sturdy frame enhances the durability and longevity of the generator.
- Extensive Experience: With over 15 years of experience in supplying diesel engines and generator sets, we have developed expertise and a strong reputation in the industry.
- Soundproofing and Fireproofing: The generator is designed with high-density sound-absorbing material, providing effective sound insulation and fireproofing capabilities.
- Practical and Attractive Design: The generator features a practical and aesthetically pleasing design. It includes a bottom hole for easy maneuvering with a forklift, as well as convenient water and oil outlets for hassle-free maintenance.
- Ample Fuel Capacity: The generator is equipped with a base frame tank that can provide 8-10 hours of continuous operation. The base frame itself is constructed with a minimum of 5mm thickness steel, ensuring durability and stability.
FAQ
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2.what is your power range of your diesel generator?
A: we can provide power from 7KVA-3000KVA
Q3. How long is your delivery time?
A:Our delivery time for diesel generator is 10 to 20 days depends on different quantity and different brands
Q3: What is your terms of payment ?
A: T/T 20% in advance and TT 80% balance paid before shipment or 100% LC at sight.
Q4: What is your warranty period?
A: Our warranty terms is 18 months or 1500 running hours whichever comes first. But based on some special project, we can extend our warranty period.
Q5: Do you offer OEM service?
A: Yes, Tecgen can provide ODM & OEM service for our diesel generator
Q6: How could I trust you?
A: Diesel Service & Supply stands behind the quality of all the used generators and industrial power equipment we sell. If you are not convinced by the pictures, videos, check-in reports, load tests, customer experiences and sales associates' knowledge about the generator you are interested in, then we invite you to come visit our expansive yard and shop facility to witness a load test and see the professional operation we have going on here.
